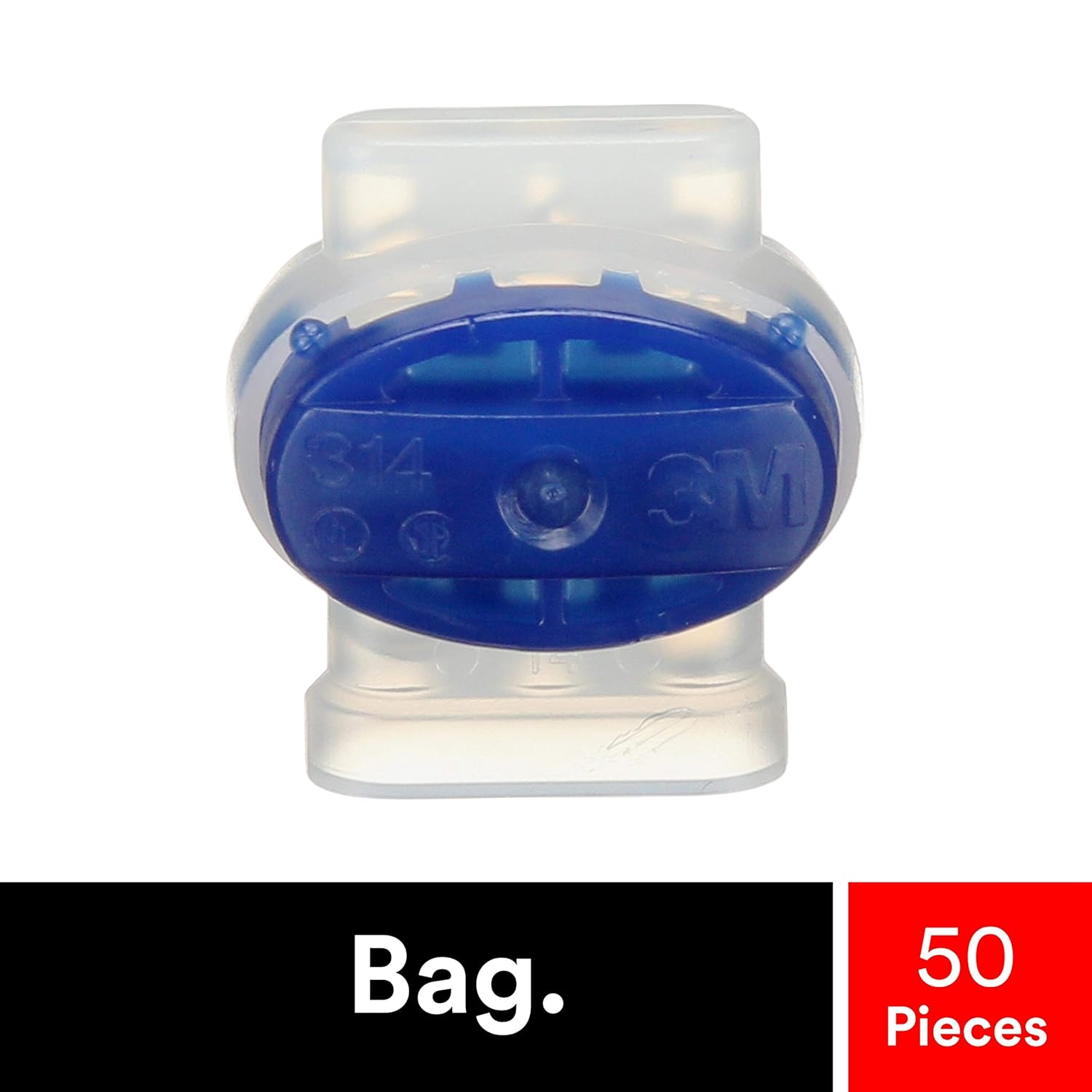

The Power of 3M Scotchlok Connectors
When it comes to wiring, safety, efficiency, and reliability should be top of mind. Whether you’re working on a home improvement project, outdoor lighting, or even industrial equipment, you need connectors that get the job done—and last. That’s where the 3M Scotchlok Electrical IDC (Insulation Displacement Connector) 314-BOX comes into play.
These connectors offer a quick and reliable solution for joining two or three wires. They prevent common issues like moisture exposure, corrosion, and wire slippage. In this post, we’ll explore why this product is a standout choice, how to use it, and why it deserves a spot in your toolbox.
Table of Contents
Key Features of the 3M Scotchlok Electrical IDC
The 3M Scotchlok Electrical IDC 314-BOX brings a host of features designed to ensure strong, long-lasting electrical connections. Here’s a closer look:
- Flame-Retardant: Added safety in wiring systems, reducing the risk of fire.
- Moisture-Resistant: Mineral oil-based grease inside forms a seal that protects against moisture, ensuring durability even in humid environments.
- Corrosion-Resistant: Tin-plated brass provides excellent conductivity and keeps corrosion at bay over time.
- Versatile Wire Compatibility: Works with both solid and stranded copper wires (22 to 14 AWG), giving you flexibility across different projects.
- Self-Stripping Mechanism: Saves you time and effort, eliminating the need to strip wires manually.
- Easy to Install: Simple to use—no complicated tools or processes required.
- UL Listed and CSA Certified: These certifications ensure you’re getting a safe and reliable product.
Why This Product is the Best for Electrical Connections
There are plenty of reasons why the 3M Scotchlok Electrical IDC is a top pick. Here’s what sets it apart:
Durability and Safety
Built to withstand tough environments, these connectors are flame-retardant and moisture-resistant, giving you peace of mind whether you’re working indoors or outdoors. From garden lighting to factory installations, this product has your back.
Top-Quality Materials
The connectors feature tin-plated brass, which ensures great conductivity and protects against corrosion. This means you’ll get a stable, long-lasting connection—something you can count on, even in moist or harsh environments.
Hassle-Free Installation
If you’ve ever found traditional connectors a hassle—stripping, crimping, and sometimes even taping wires—3M Scotchlok Connectors will feel like a breath of fresh air. Installation is quick and painless. Just insert the wires, squeeze the connector shut, and you’re good to go.
M Scotchlok Electrical Pigtail Insulation Displacement Connector 314 provides a quick, reliable dual element connection and creates a moisture resistant seal with a mineral oil based grease. The translucent connector body is nylon insulated and can be used to connect 2 or 3 wires (22-14 AWG, solid or stranded copper). It is self stripping, flame retardant, and moisture resistant. Solvent resistant plastic construction.
How to Use 3M Scotchlok Connectors
Installing the 3M Scotchlok Electrical IDC is incredibly straightforward, even for first-timers. Here’s how to do it:
Step 1: Choose the Right Wires
Make sure you’re using compatible wire sizes (22-14 AWG), and that they’re copper—whether solid or stranded.
Step 2: Position the Wires
Align the two or three wires that need to be connected, ensuring that the ends are clean and undamaged.
Step 3: Insert the Wires into the Connector
Place the wires inside the Scotchlok connector. The self-stripping feature means you don’t need to worry about removing the insulation.
Step 4: Squeeze to Secure
Use pliers or a crimping tool to close the connector. It will automatically strip the wire insulation and make a firm connection.
Step 5: Check the Connection
Double-check to ensure the wires are securely connected. Once everything looks good, you’re done!
Specifications
Specifications | |
|---|---|
| Product Dimensions | 11 x 6 x 10.25 inches |
| Weight | 0.85 ounces |
| Wire Compatibility | 22-14 AWG, solid/stranded copper |
| Insulation Material | Nylon |
| Contact Material | Tin-plated brass |
| Operating Temperature | Up to 221°F (105°C) |
| Voltage Rating | 600V for building wires, 1000V for signs/fixtures |
| Certifications | UL Listed, CSA Certified, RoHS Compliant |
Pros and Cons
Our Pick
| Our Pick | |||
|---|---|---|---|
| Special Features | Moisture Resistant Seal, Flame Retardant | Moisture Resistant Applications | Moisture Resistant Applications Flame Retardant |
| Maximum Insulation | 0.155″ (3,94 mm) | 0.155″ (3,94 mm) | 0.145″ (3,68 mm) |
| AWG (mm2) Wire Range | 22-14 (0,5-1,5) | 22-16 (0,5-1,5) | 18-16 (0,75-1,5) Solid/Stranded 14 Stranded |
| Operating Temperature | 105°C (221°F) | 105°C (221°F) | 75°C (167°F) |
| UL Certified | ✓ | ✓ | ✓ |
| CSA Certified | ✓ | ✓ | ✓ |
| Made in USA | ✓ | ✓ | ✓ |
Frequently Asked Questions
Can 3M Scotchlok Connectors be used for underground installations?
While they’re not recommended for direct underground use, you can apply additional protective measures to use them in such environments.
Is it hard to install these connectors?
Not at all! The self-stripping feature makes installation super easy. Just insert the wires and squeeze the connector shut.
Are these connectors moisture-resistant?
Yes, they are! The mineral oil-based grease creates a moisture-resistant seal, protecting the wires from corrosion and other moisture-related issues.
Why You Should Consider 3M Scotchlok IDC
The 3M Scotchlok Electrical IDC 314-BOX is a reliable, top-tier solution for anyone who needs a fast, secure, and durable connection. Whether you’re handling an outdoor wiring project, installing fixtures in a commercial setting, or working on industrial equipment, these connectors offer the reliability and performance you need.
Ready to make your electrical connections safer and more efficient? You’ll be hard-pressed to find a more versatile, high-quality connector than the 3M Scotchlok IDC. Get yours today and elevate the quality of your next wiring project!
By adding the 3M Scotchlok Electrical IDC 314-BOX to your toolkit, you’re choosing a reliable solution that guarantees strong, moisture-resistant, and durable connections. Don’t miss out—take the next step in making your projects safer and more efficient today!
